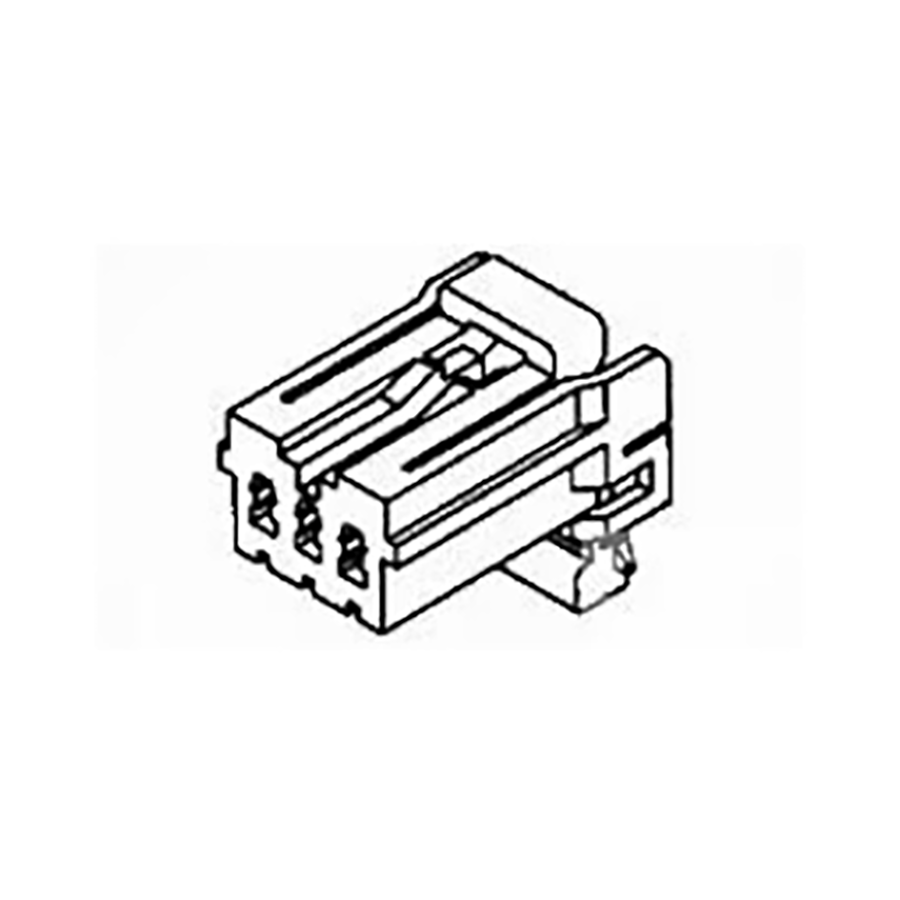

174922-1
Manufacturer:
TE Connectivity
Mfr.Part #:
174922-1
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Plug, Socket Number of Positions:4 Pitch:3.5 mm
| Parameter | Value |
|---|---|
| Length | 21.6 mm |
| Width | 17.399 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 15.9004 mm |
| Packaging | Bulk |
| Depth | 21.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 3.5 mm |
| Flammability Rating | UL94HB |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| ELV | Compliant |
| Body Material | PBT |
| Connector Type | Plug, Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Housing Color | White |
| Mating Tab Width | 1.8 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
Stock: 531
Distributors
pcbx
pcbxUnit Price$0.20525
Ext.Price$0.20525
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20525 | $0.20525 |
| 10 | $0.18243 | $1.82430 |
| 50 | $0.16214 | $8.10700 |
| 100 | $0.14060 | $14.06000 |
| 500 | $0.12193 | $60.96500 |
| 1000 | $0.11653 | $116.53000 |
| 3000 | $0.11137 | $334.11000 |
| 5000 | $0.10643 | $532.15000 |
| 10000 | $0.10515 | $1051.50000 |
